easy darts for a 0.5 inch barrel

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
User avatar
air_dannon
Private 3
Private 3
Posts: 58
Joined: Thu Dec 06, 2012 12:04 pm
Location: Wisconsin

Thu Oct 31, 2013 11:45 am

Playing around with ammo and this combo is pretty solid for my pirate pistol.
  • - yellow twist-on wire connectors are quite snug in 1/2" copper
  • - extra strong steel trim nail, 2.5", "Maze" brand
Even without piercing the front area of the nail with a bit of light wad, the darts self-level really quick out of the 10" pistol barrel.

The Chrony measured them at 380 fps with 160 psi.
Attachments

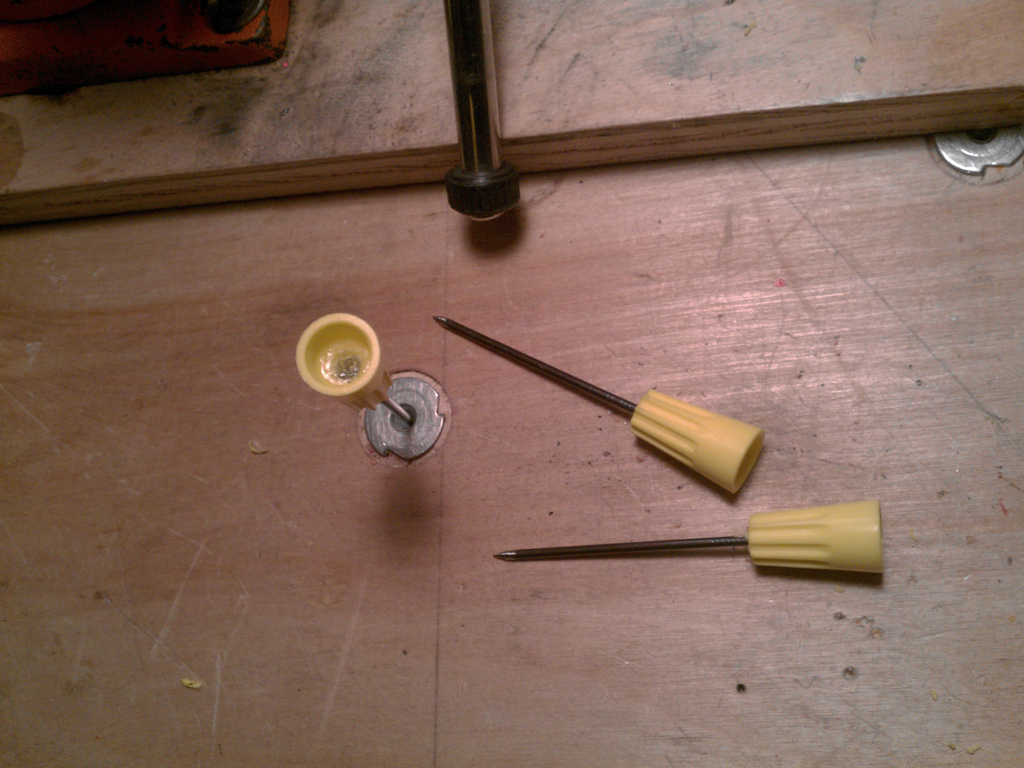

drill a hole in the closed side, making sure to retain that inner wire coil, pound a nail through, add a bit o' poxy.  The epoxy grabs that wire coil nicely and secures the nail head in place.
drill a hole in the closed side, making sure to retain that inner wire coil, pound a nail through, add a bit o' poxy. The epoxy grabs that wire coil nicely and secures the nail head in place.

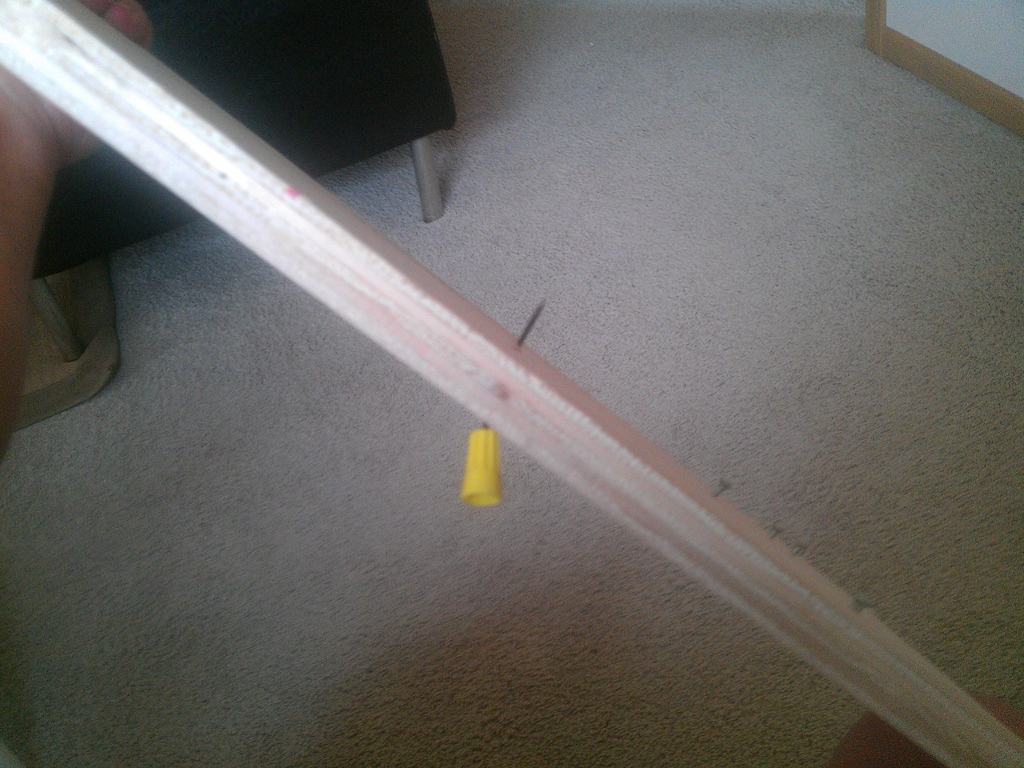

3/4" birch plywood at about 20 ft.  Even with the extra strong steel nails, at this distance, they get a beat down.
3/4" birch plywood at about 20 ft. Even with the extra strong steel nails, at this distance, they get a beat down.
User avatar
dart guy
Specialist 3
Specialist 3
Posts: 394
Joined: Mon May 13, 2013 7:54 pm
Location: not telling you

Thu Oct 31, 2013 3:09 pm

i think i have masonry nails :mrgreen: :twisted:
when life gives you lemons... make root beer and leave the world wondering how you did that :D
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26216
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 576 times
Been thanked: 347 times

Donating Members

Thu Oct 31, 2013 3:17 pm

Nice, these little things always penetrate in a manner that seems disproportionate to their appearance.

You can thread a needle through a coin with relative ease ;)

hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Talk
Specialist
Specialist
Posts: 109
Joined: Tue Sep 24, 2013 2:47 pm

Sat Nov 02, 2013 3:27 pm

I made a pvc gun 3 months ago didn't waste much money because it was the first one, its does not work now because my foot tyre pump can't take the pressure that builds inside the gun
I made those darts which are very easy to make in less time and with less effort with easy stuff that are within our hands reach
Attachments

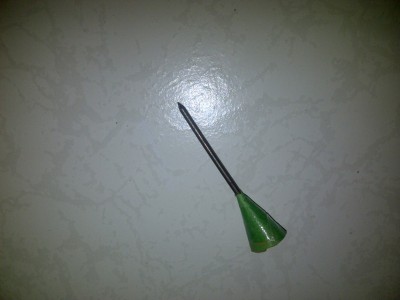

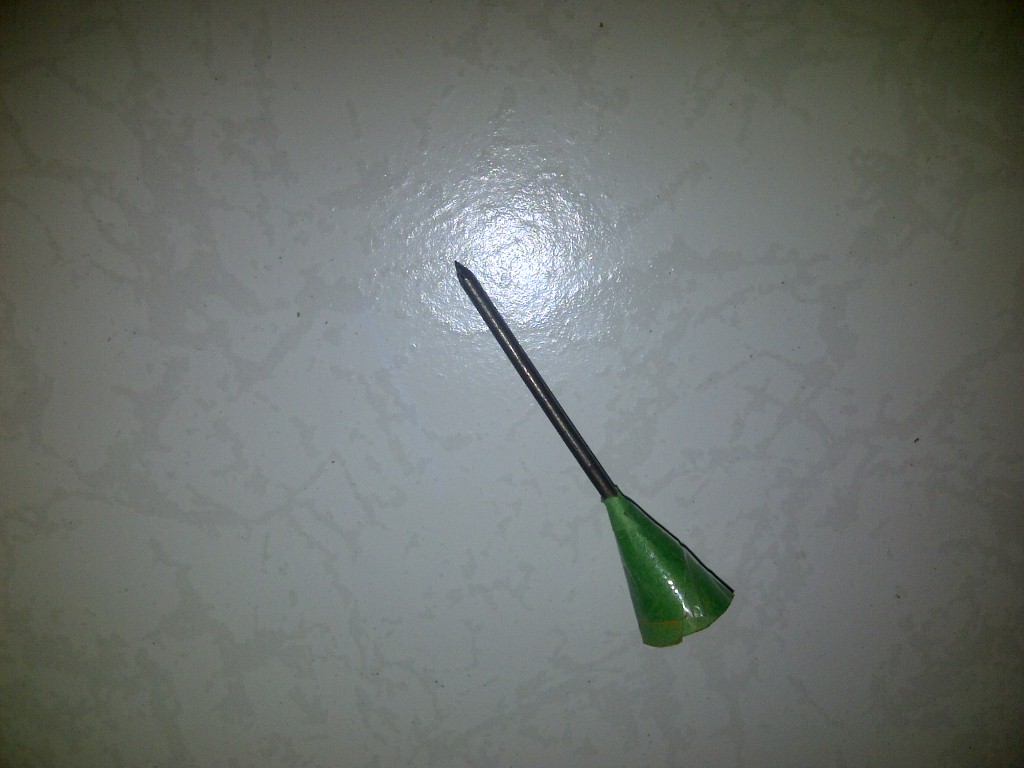

Used some normal adhesieve to keep nail in it's place
Used some normal adhesieve to keep nail in it's place

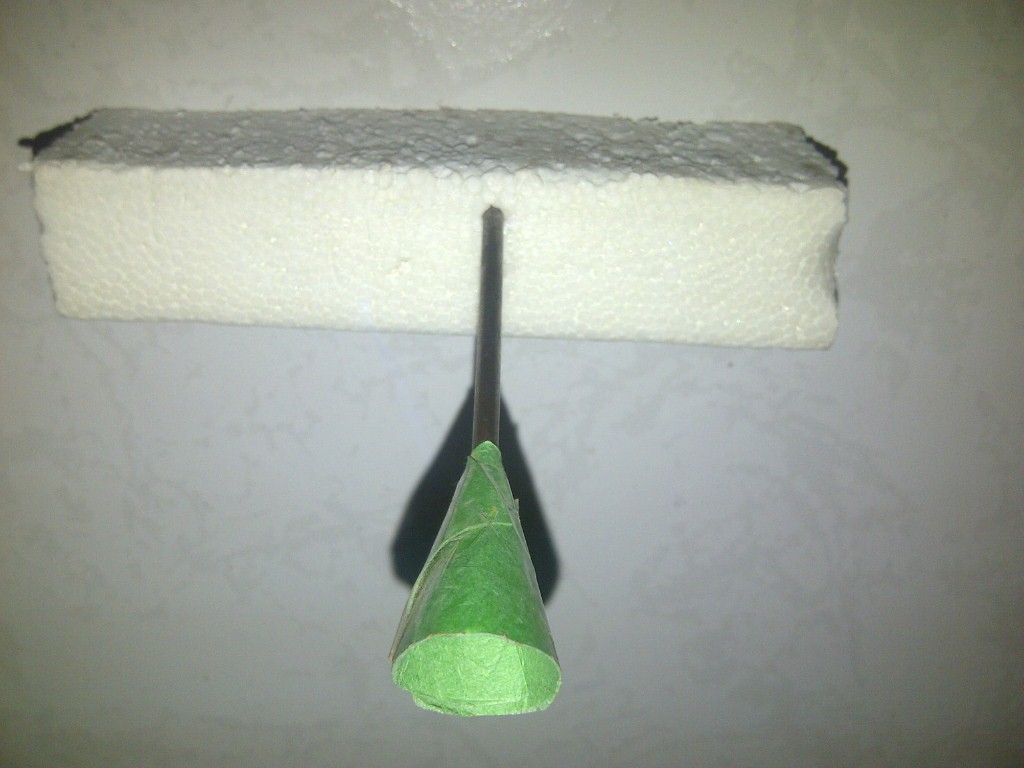

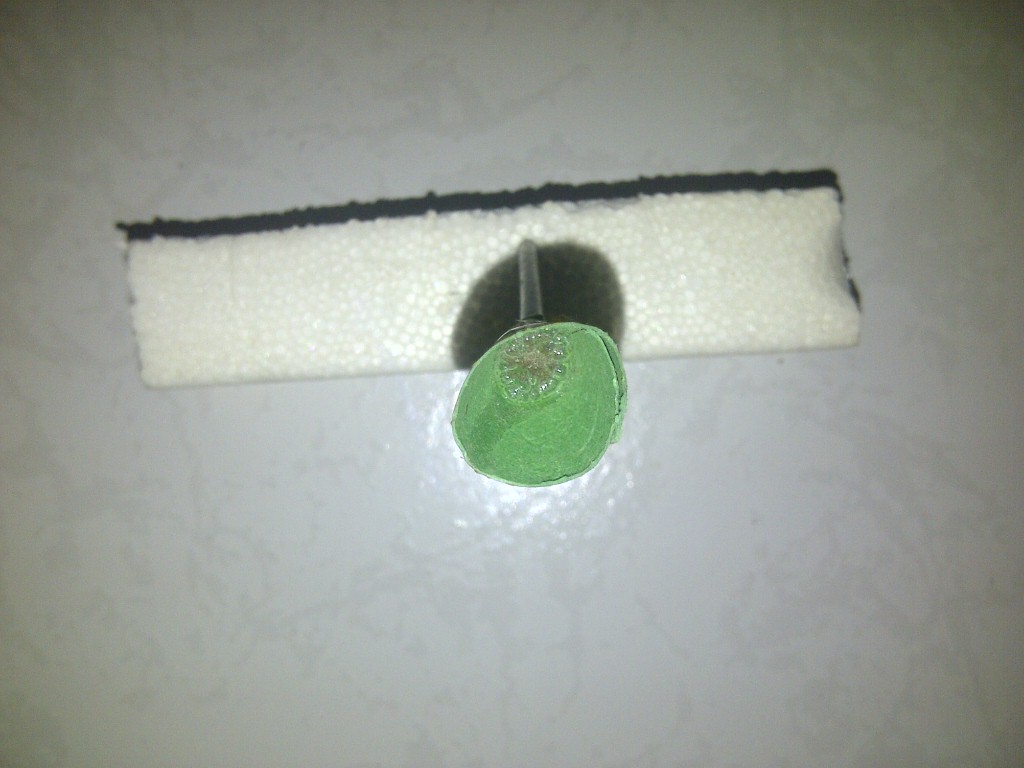

Used a chart paper and tape
Used a chart paper and tape

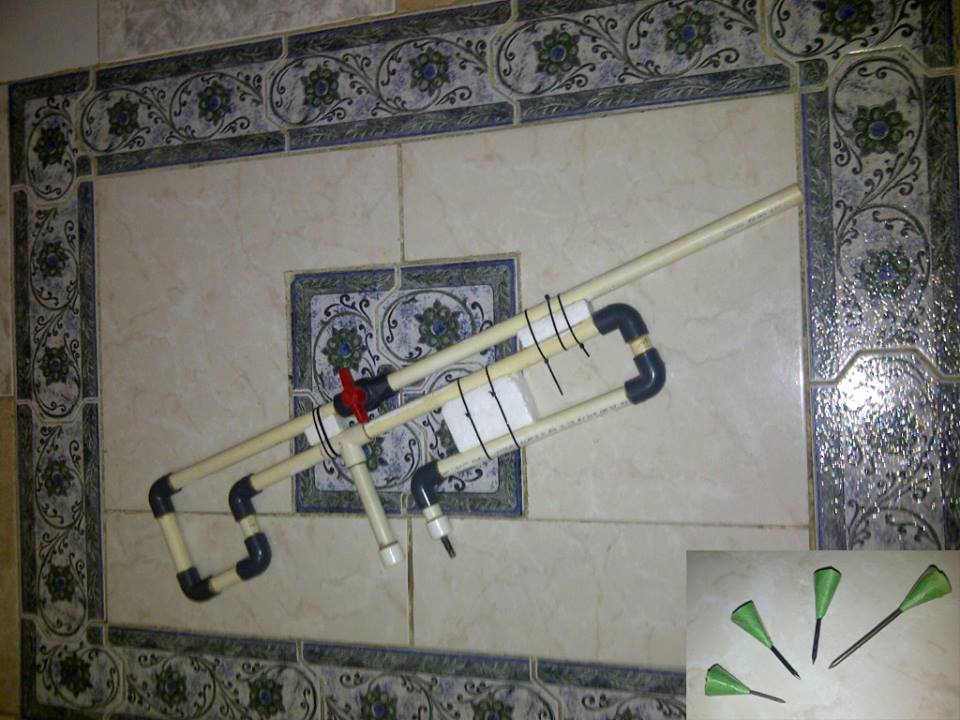

I made those for my first pvc gun
I made those for my first pvc gun
User avatar
dart guy
Specialist 3
Specialist 3
Posts: 394
Joined: Mon May 13, 2013 7:54 pm
Location: not telling you

Mon Nov 04, 2013 3:49 pm

Use the cone method, it is much more economical and is also destructive as well.
