My first shot at a pneumatic

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
User avatar
Legendpilot
Private 4
Private 4
Posts: 66
Joined: Wed Jan 03, 2007 5:52 pm

Wed Feb 07, 2007 9:36 pm

When I first found this site, I was in awe of the raw power and super loud sound I was getting from my first combustion gun. I made mention of this fact in an early post in which Brian the brain said, "If you like combustion for it's power, wait until you discover pneumatics!!", man was he right!

The following gun is still in the painting/detailing stages..if I make any drastic changes I'll edit them in.

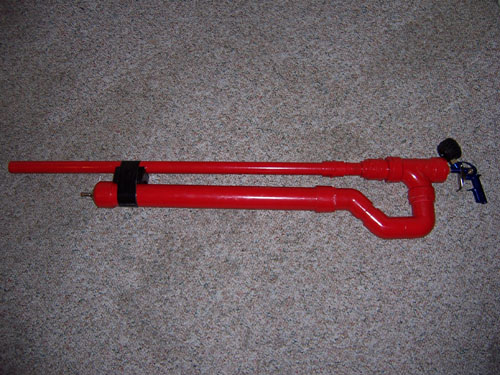

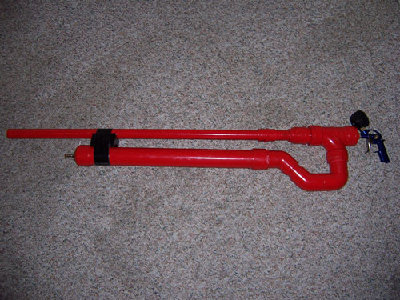

2"x24" chamber
1"x32" barrel
muzzle loader
homemade diaphragm valve - barrel sealed(which I made w/o asking, and had NO idea how to make until I found this site.) :lol:

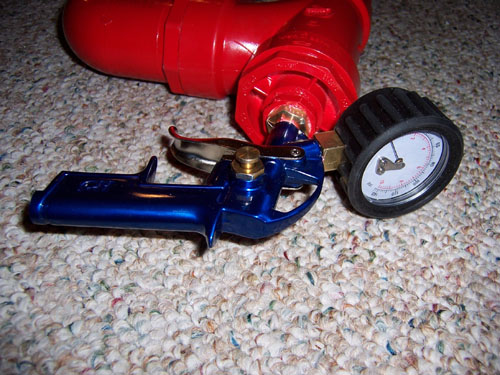

blowgun pilot valve w/attached pressure gauge

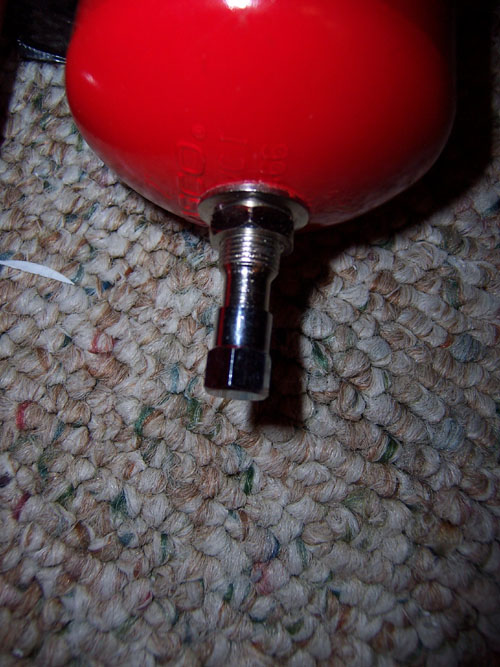

all metal, threaded schrader valve

Shoots like a champ - I'll post a video soon. -Lp
Attachments
Last edited by Legendpilot on Wed Feb 07, 2007 9:55 pm, edited 1 time in total.
Killjoy
Sergeant
Sergeant
Posts: 1052
Joined: Sun Nov 12, 2006 12:51 am
Location: New Mexico

Wed Feb 07, 2007 9:47 pm

Nice gun, i really like the trigger set up. Whats the primary ammo?
User avatar
frankrede
Sergeant Major 2
Sergeant Major 2
Posts: 3220
Joined: Thu Jul 20, 2006 9:47 pm
Has thanked: 1 time
Been thanked: 1 time

Wed Feb 07, 2007 10:04 pm

Haha, you use the super schrader! those rock. This is your first? Well done, I hope its not your last.

edit: too bad you used a DWV wye:( oh who cares its still good.
Current project: Afghanistan deployment
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Wed Feb 07, 2007 10:45 pm

Also DWV 45* elbow on it as well. That DWV wye will probably crack under pressure eventually.

oh and nice looking gun, The red is uber cool. :P
User avatar
Legendpilot
Private 4
Private 4
Posts: 66
Joined: Wed Jan 03, 2007 5:52 pm

Thu Feb 08, 2007 6:05 pm

Thanks for the kind words.



Killjoy wrote:Whats the primary ammo?

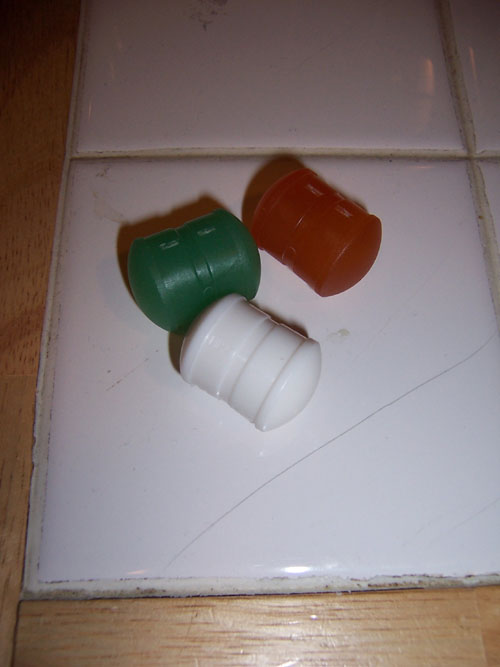

Well I found some very hard acrylic plugs for accents in a bathroom faucet. The faucet came with every color and we only used one.

Wrapped in tape just few times they fit nicely in the one inch barrel and absorb energy well. I shot through a piece of 1/2" plywood and the round hit the smooth concrete floor behind it. The round didn't change shape nor did it crack, just the flat spot you see in the pic.

They weigh in at exactly 1/2oz, so I'm currently looking for something a little heavier but these are nice for now. My compressor only fills to 100psi, and I have no desire to pump manually, regardless I usually fill it to 80psi as a standard.

The gun is very reliable, and powerful. I haven't been into pneumatics for long, but when you can take a few pieces of plastic, metal, and rubber that mean nothing alone and assemble a weapon that could pierce a phone book, well, that's just cool.

Anyway, I'm babbling..here's the ammo. They might make a good mini-piston. :idea:
Attachments

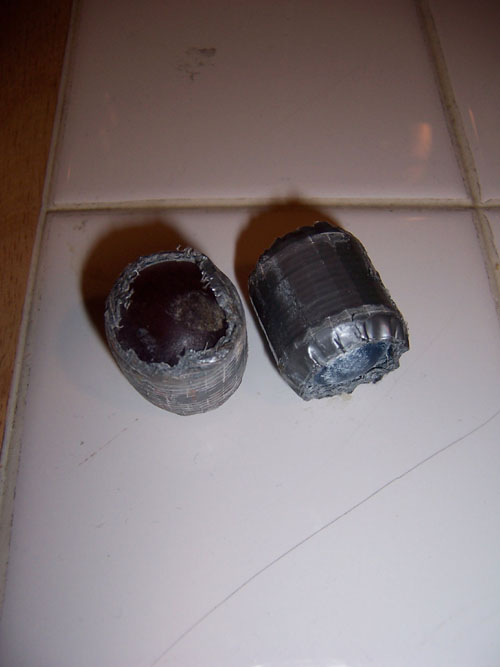

Wrapped up.
Wrapped up.
